FI14M ID Mount Flange Facer Application in Pressure Vessel Manufacturing
CASE INTRODUCTION
In 2025, a leading pressure vessel and forging manufacturer in China—long-term supplier for Sinopec, CNPC, CNOOC, and Shenhua Group—faced recurring challenges with small flanges on valves, nozzles, and tanks. These flanges are often exposed to high pressure, corrosion, and frequent handling, which causes scratches, wear, and sealing surface damage. Conventional workshop repairs were inefficient, making on-site machining the only practical solution.

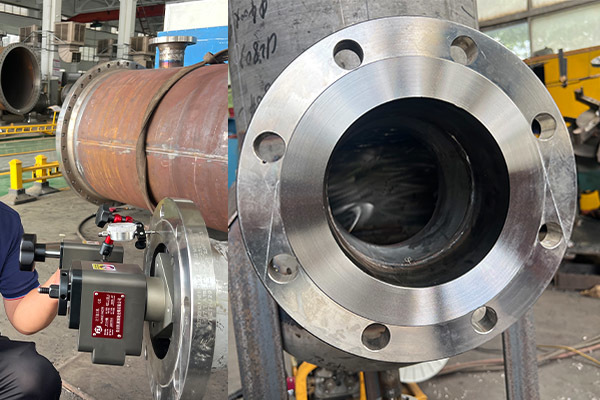

The company had already used MT’s FI26E Flange Facing Machine for more than two years and was impressed by its precision and durability. To enhance its capability in repairing small-diameter flanges, it invested in the FI14M Manual Flange Facing Machine. Compact and lightweight, the FI14M can be quickly installed on small flanges and operated manually with smooth feed control. It consistently delivers spiral grooved finishes that meet international gasket sealing standards. By using this portable tool, the customer successfully restored multiple valve and tank flanges on-site without dismantling equipment—reducing downtime, ensuring sealing reliability, and reinforcing confidence in MT’s machining solutions.
SPECIFICATIONS
| Model: | FI14M Manual Flange Facing Machine |
| Facing Diameter Range | 1.07" to 14" (27.2–355.6 mm) |
| ID Mounting Range | 1.07" to 10.63" (27.2–270 mm) |
| Drive Type | Manual (no external power required) |
| Feed Speeds | Fine feed: 0.125 mm/rev (0.005 inch/rev) ASME B16.5 standard feed: 0.5 mm/rev (0.02 inch/rev) |
| Minimum Swing Diameter | With knob handle: 22.9" (582 mm) Without knob handle: 19.5" (495 mm) |
| Working Weight | 9.0 kg |
| Shipping Weight | 29.0 kg |
| Shipping Dimensions (L×W×H) | 680 × 510 × 250 mm (Plastic carry case) |
PERFORMANCE AND VALUE DELIVERED
The FI14M Flange Facing Machine delivered outstanding results:
- Restored small-diameter flange sealing surfaces to industry standards.
- Ensured safe and reliable operation of valves and tank flanges in pressure vessel manufacturing.
- Reduced downtime and avoided costly disassembly or replacement.
- Delivered high precision with smooth manual feed control and stable cutting performance.
- Reinforced MT Portable Machine’s reputation as a customer-focused on-site machining solution provider.
Its portability, precision, and efficiency proved essential in maintaining production safety, equipment reliability, and operational efficiency for small flange repairs.
KEY INDUSTRY CHALLENGES SOLVED BY FI14M
Sealing surface damage on small flanges
precisely restored sealing faces to ensure proper performance.
High downtime and inefficiency of conventional workshop repairs
on-site machining minimized production interruptions.
Limited access and tight working space
compact, lightweight design allowed easy installation directly on small flanges.
Need for high-precision finishing
manual feed system provided smooth, accurate control for spiral-grooved surfaces.
Reliability concerns in repetitive small flange repairs
consistent performance reinforced customer confidence in MT’s products.
FLANGE FACER MACHINE SELECTION TABLE
| Model | Facing Diameter Range | ID/OD Mounting Range | Drive Type |
| FI14M | 1.07" to 14" (27.2–355.6 mm) | 1.07" to 10.63" (27.2–270 mm) | Manual |
| FE12P | 0–12" (0–305 mm) | 2–17.7" (50–450 mm) | Pneumatic (1.0 kW) |
| FE12E | 0–12" (0–305 mm) | 2–17.7" (50–450 mm) | Electric Servo motor (1.0 kW) |
| FI26P | 4.72–27.56" (120–700 mm) | 3.78–28.35" (96–720 mm) | Pneumatic (1.0 kW) |
| FI26E | 4.72–27.56" (120–700 mm) | 3.78–28.35" (96–720 mm) | Electric Servo motor (1.0 kW) |
| FI40P | 6–40" (153–1000 mm) | 5.7–35.8" (145–910 mm) | Pneumatic (1.7 kW) |
| FI40E | 6–40" (153–1000 mm) | 5.7–35.8" (145–910 mm) | Electric Servo motor (1.5 kW) |
| FI60P | 12.6–59" (320–1500 mm) | 11.4–57" (290–1450 mm) | Pneumatic (3.0 kW) |
| FI60E | 12.6–59" (320–1500 mm) | 11.4–57" (290–1450 mm) | Electric Servo motor (3.0 kW) |
| FI80P | 26.34–80" (670–2032 mm) | 31.1–74.8" (790–1900 mm) | Pneumatic (3.0 kW) |
| FI80E | 26.34–80" (670–2032 mm) | 31.1–74.8" (790–1900 mm) | Electric Servo motor (3.0 kW) |
